M1 Tested U-Shape Seating Frame

M1 Tested U-Shape Seating Frame

£2050.00 + VAT

Lead time: 2-4 weeks for stocked items from order confirmation.

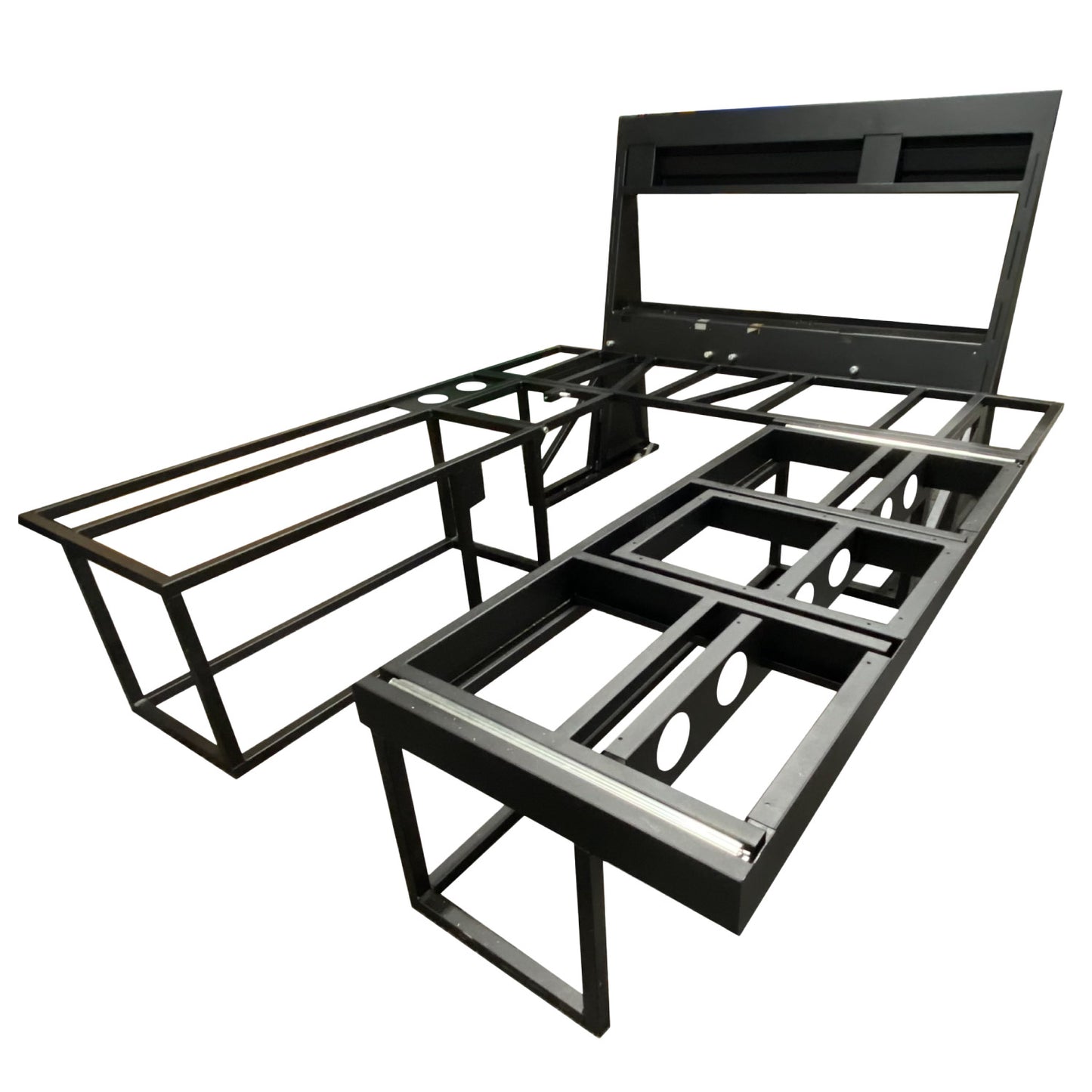

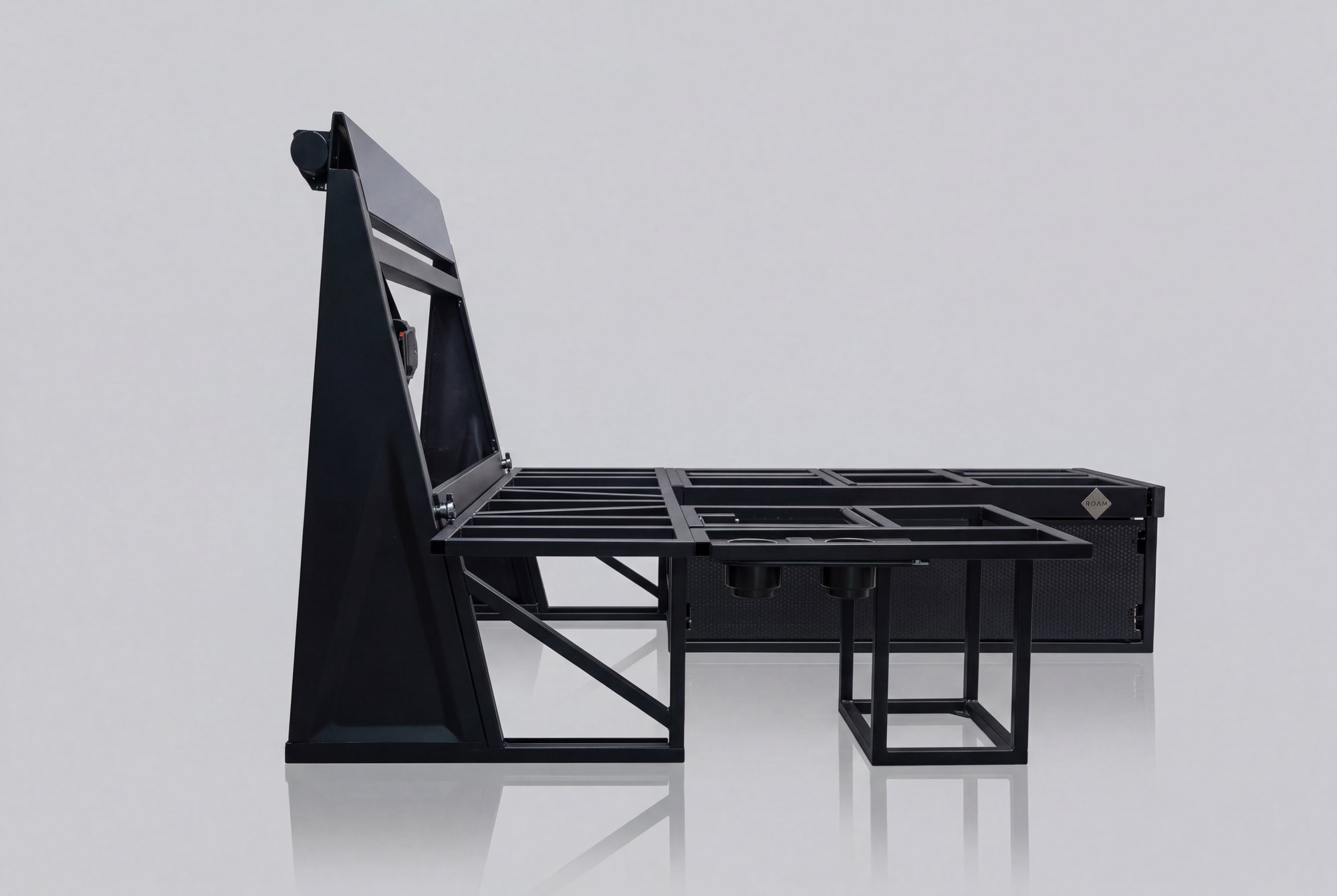

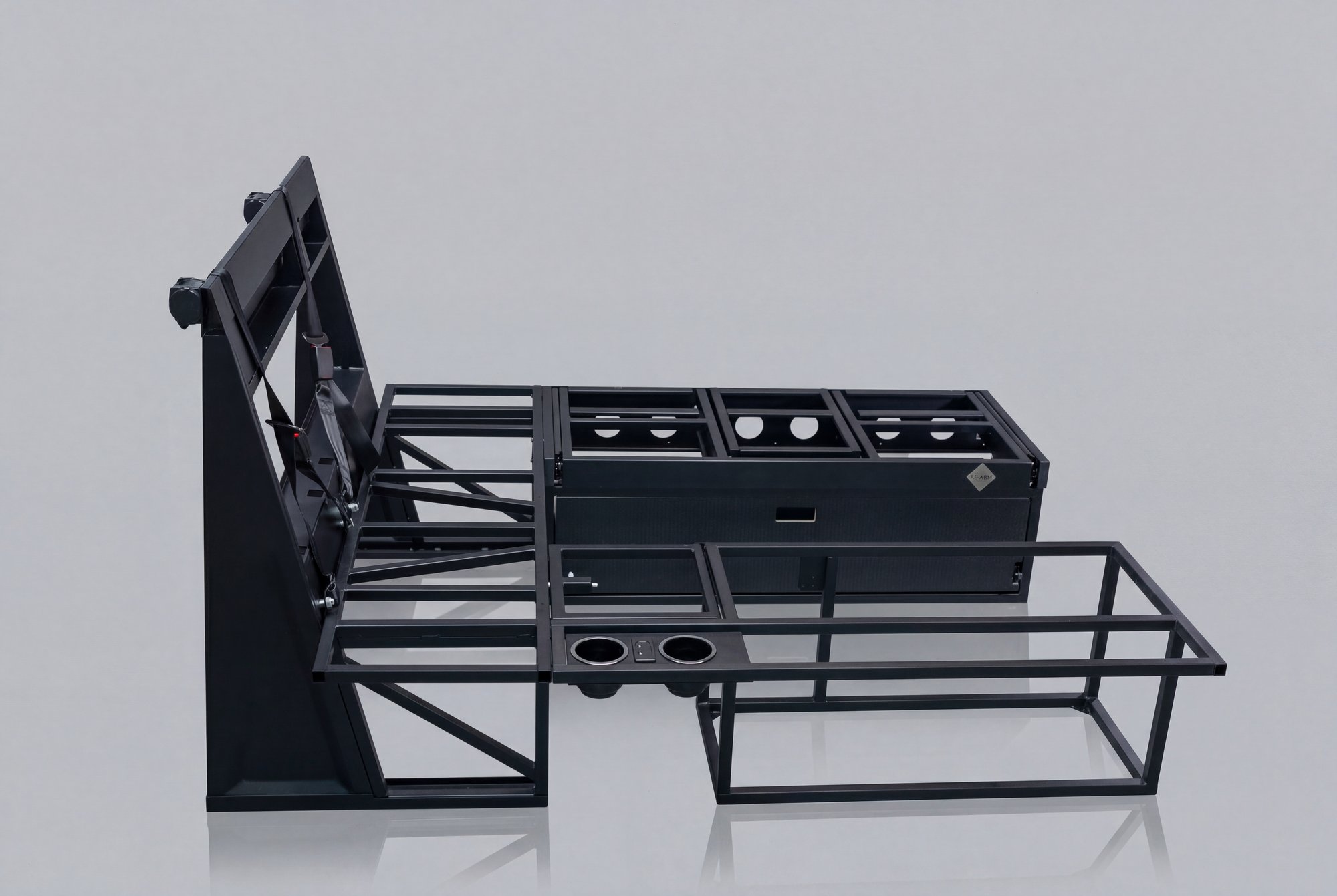

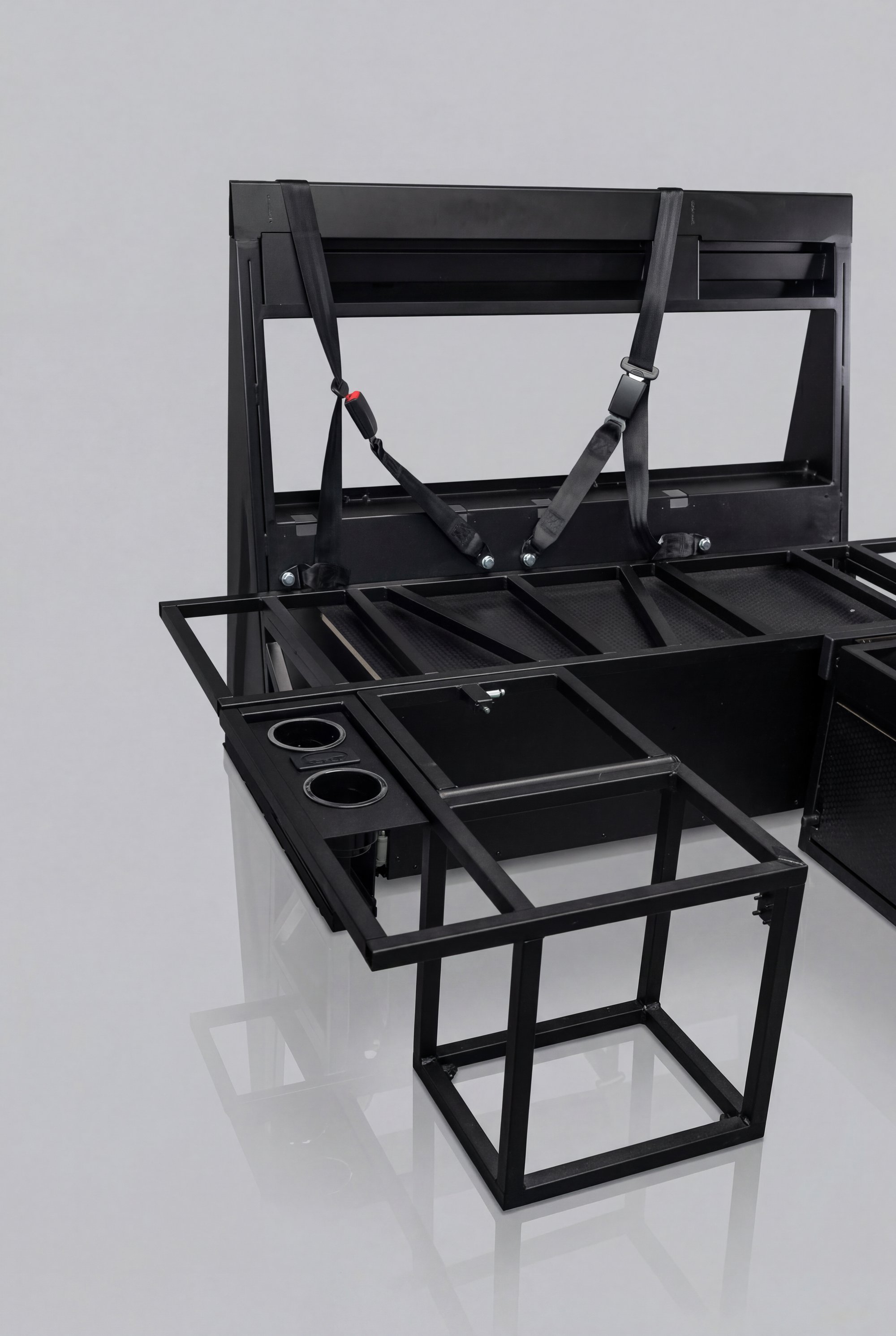

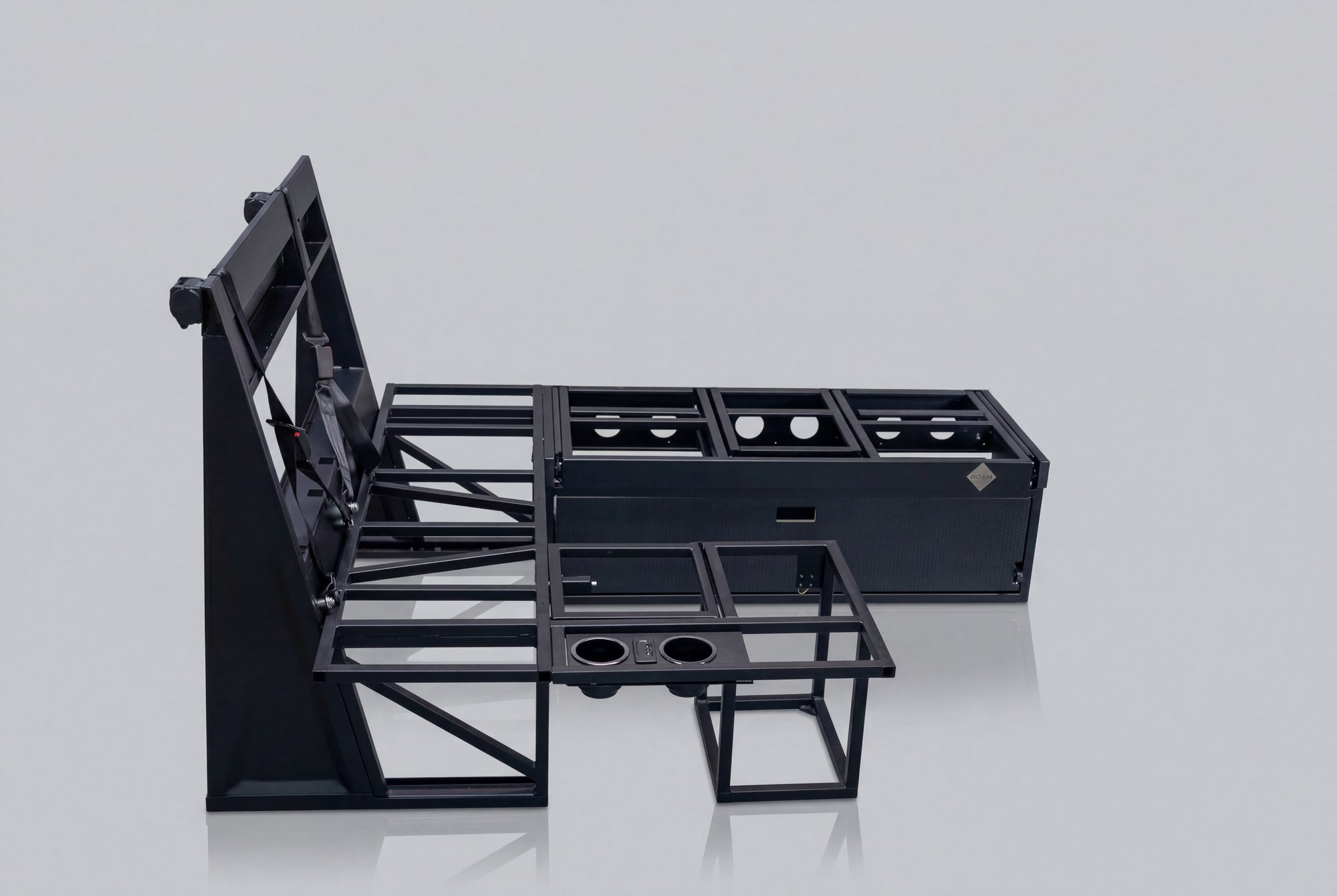

Transform your campervan interior with our exclusive M1 Tested U-Shape Seating Frame, designed for safety, comfort, and versatility. Steel frame with integrated 3-point belts and ISOFIX on the rear travel seat. The rear travel seat is independently pull tested for seat belt anchorage strength to ECE R14.09. Side bench sections are untested and for stationary use only. Available in Standard and Full Width configurations.

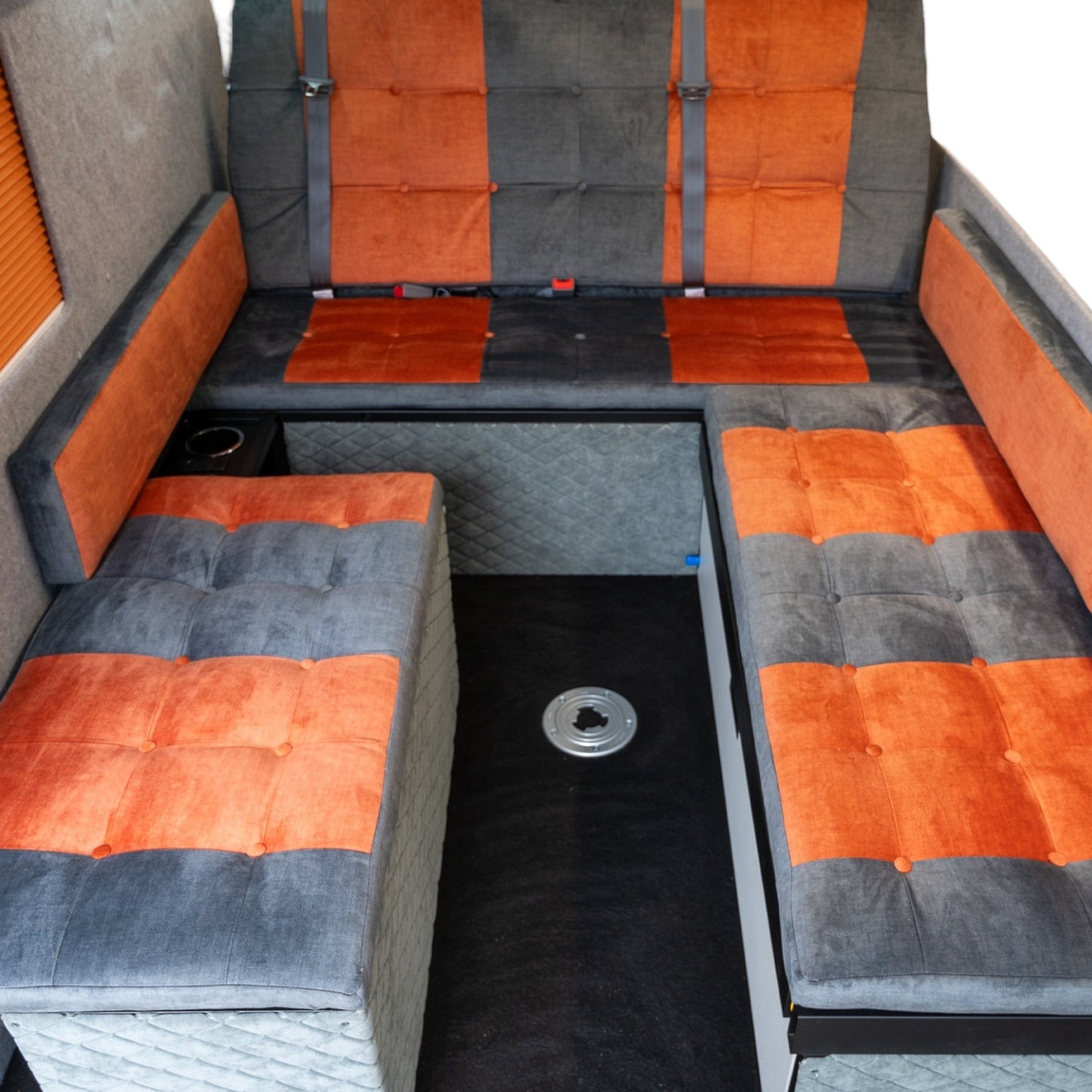

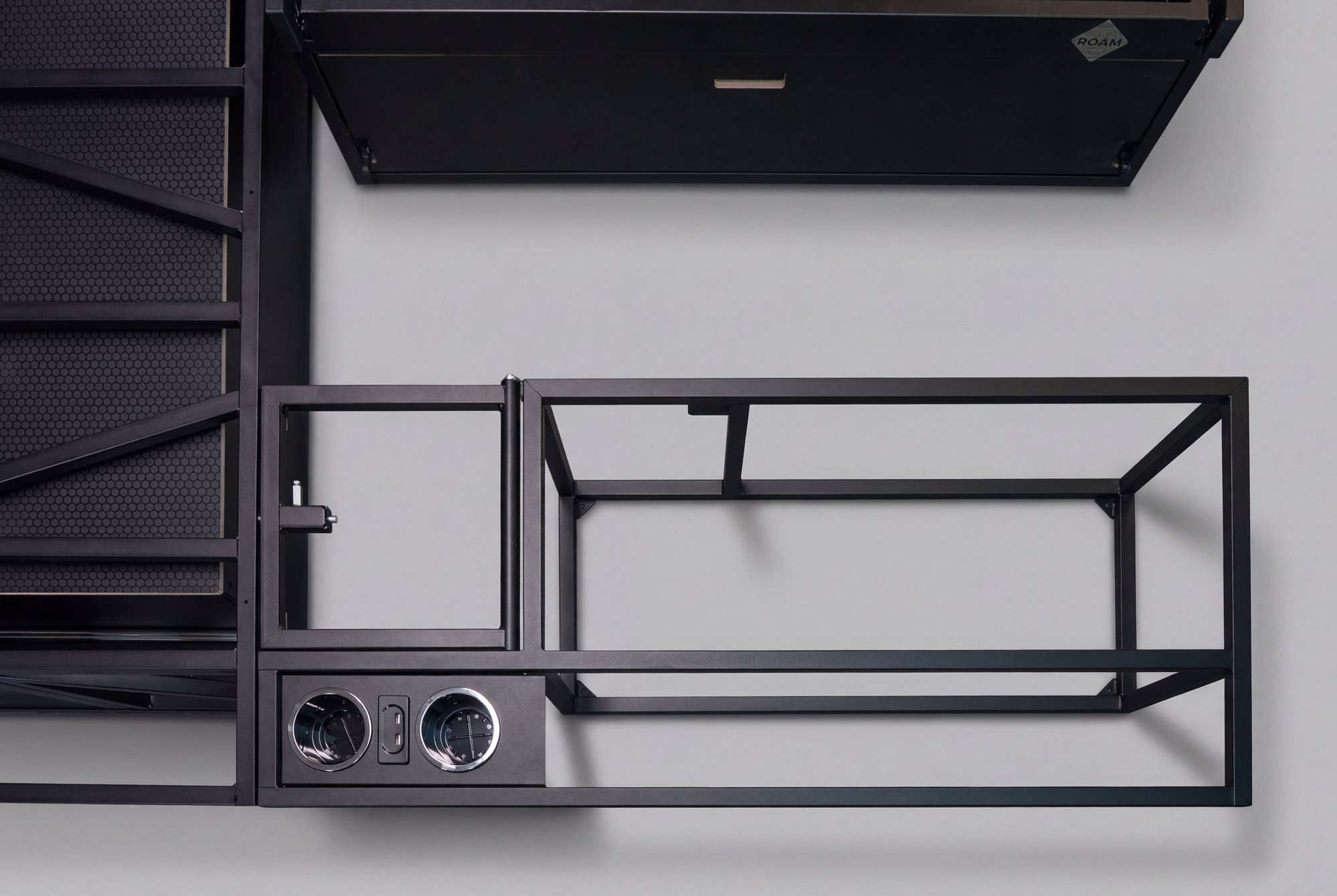

Price is for the 3-piece frame system only. Photos may show optional extras (under-bed drawer storage, rear pull-out units) which are sold separately.

M1 testing (ECE R14.09 seat belt anchorage pull test) applies only to the rear section with the seat belts and ISOFIX. Side bench sections are untested and for stationary use only — passengers must not travel on unbelted seating.

Head clearance: in the rear travel seat, a seated occupant's head can be close to the D pillar (the rear structural pillar of the van). How close depends on the vehicle and on where the seat is installed. At the rearmost positions the seat suits children and occupants up to approximately 1.68m (5ft 6in). Taller occupants need the seat installed further forward so that their head is clear of the D pillar. Head clearance is not covered by the tests. Your installer must check it for the tallest person who will travel in the seat.

UK & EU Registered Designs

UK Nos. 6266396–6266399 • Registered 06/03/2023 • EU RCD No. 015033319 • Registered 06/09/2023

Secure checkout powered by Stripe

Key Features

  • Rear travel seat M1 tested to ECE R14.09 (seat belt anchorage pull test)

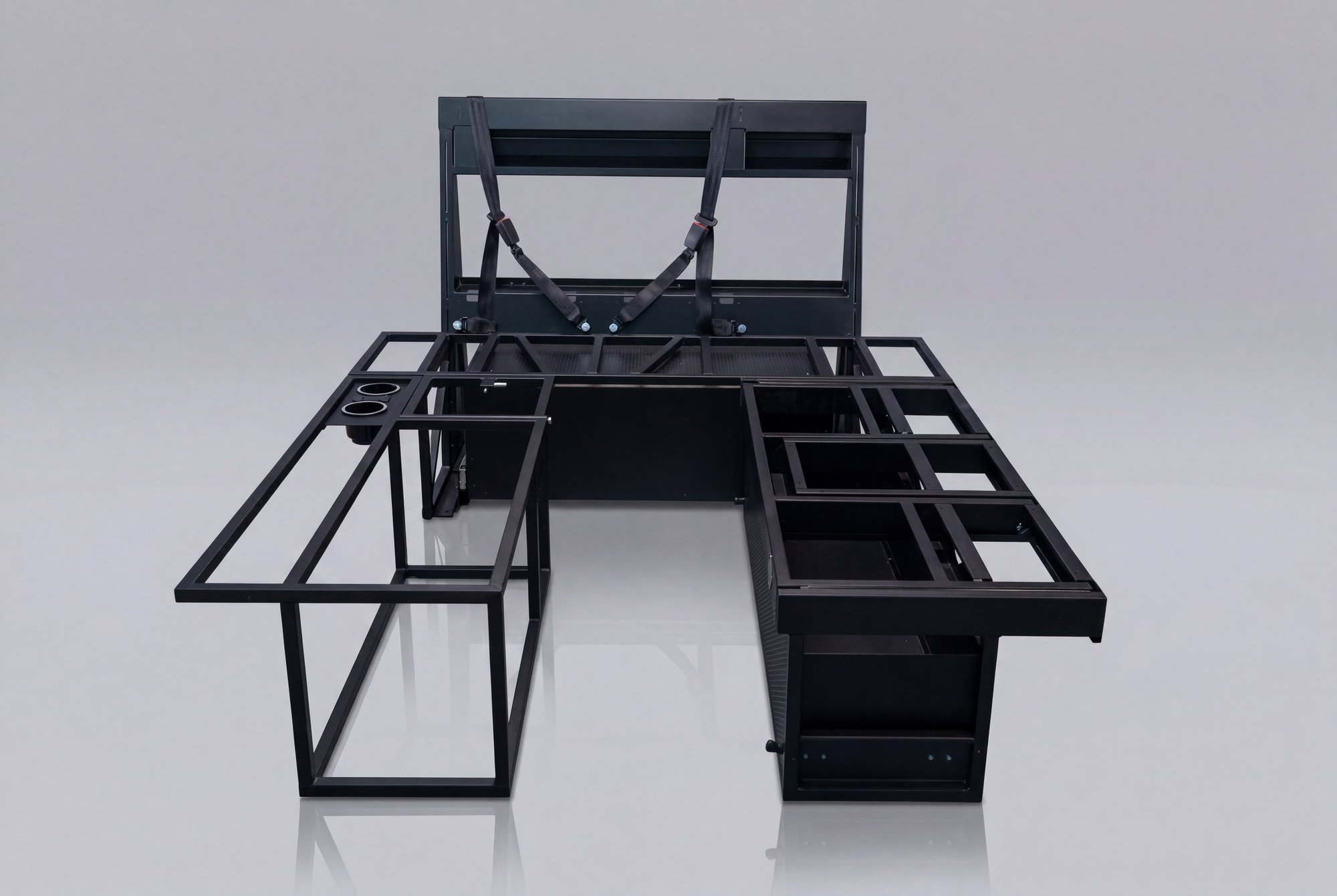

  • Integrated 3-point seatbelts and ISOFIX points
  • Laser-cut, precision-engineered steel construction
  • Textured black powder-coated finish
  • Quick conversion from seating to sleeping

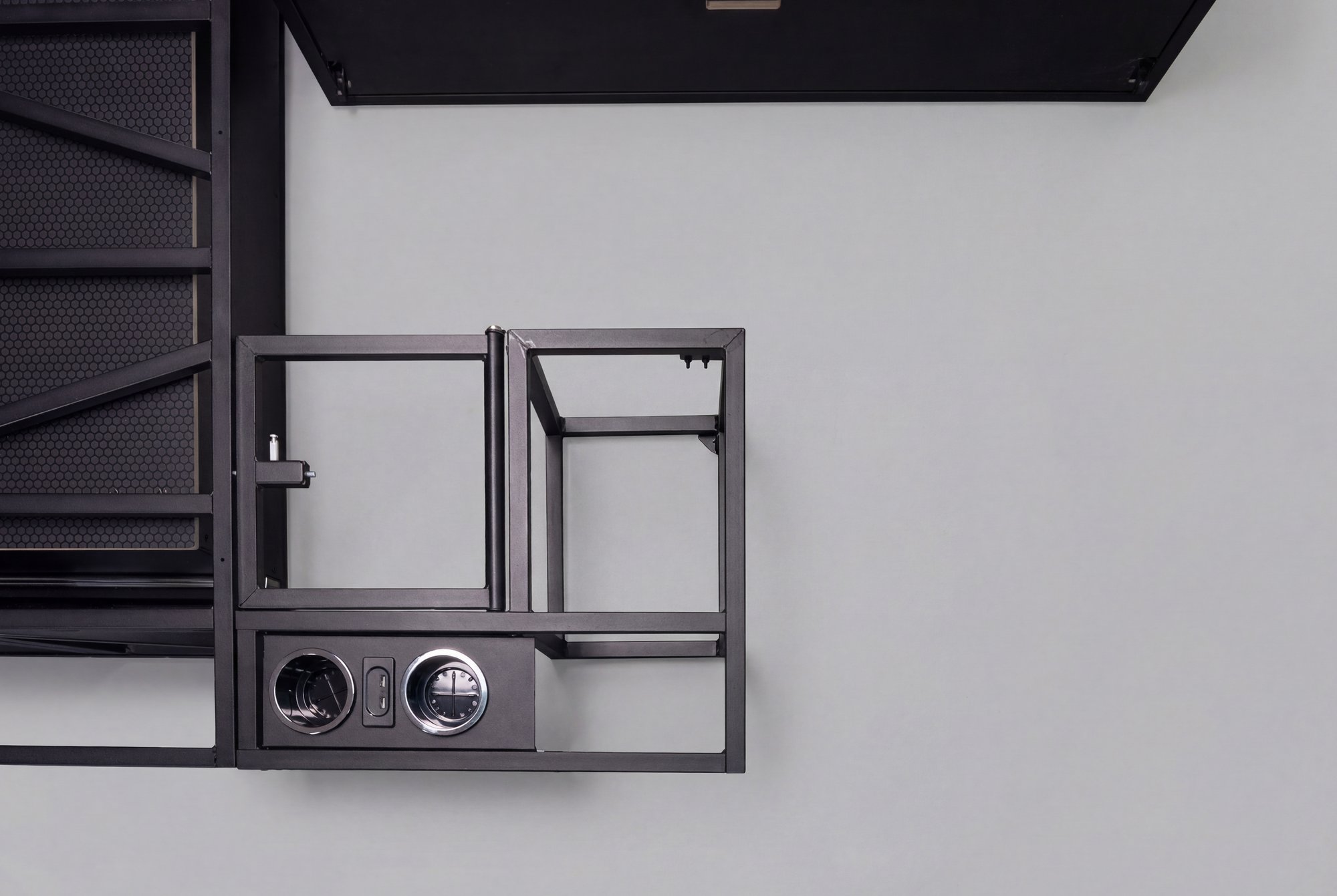

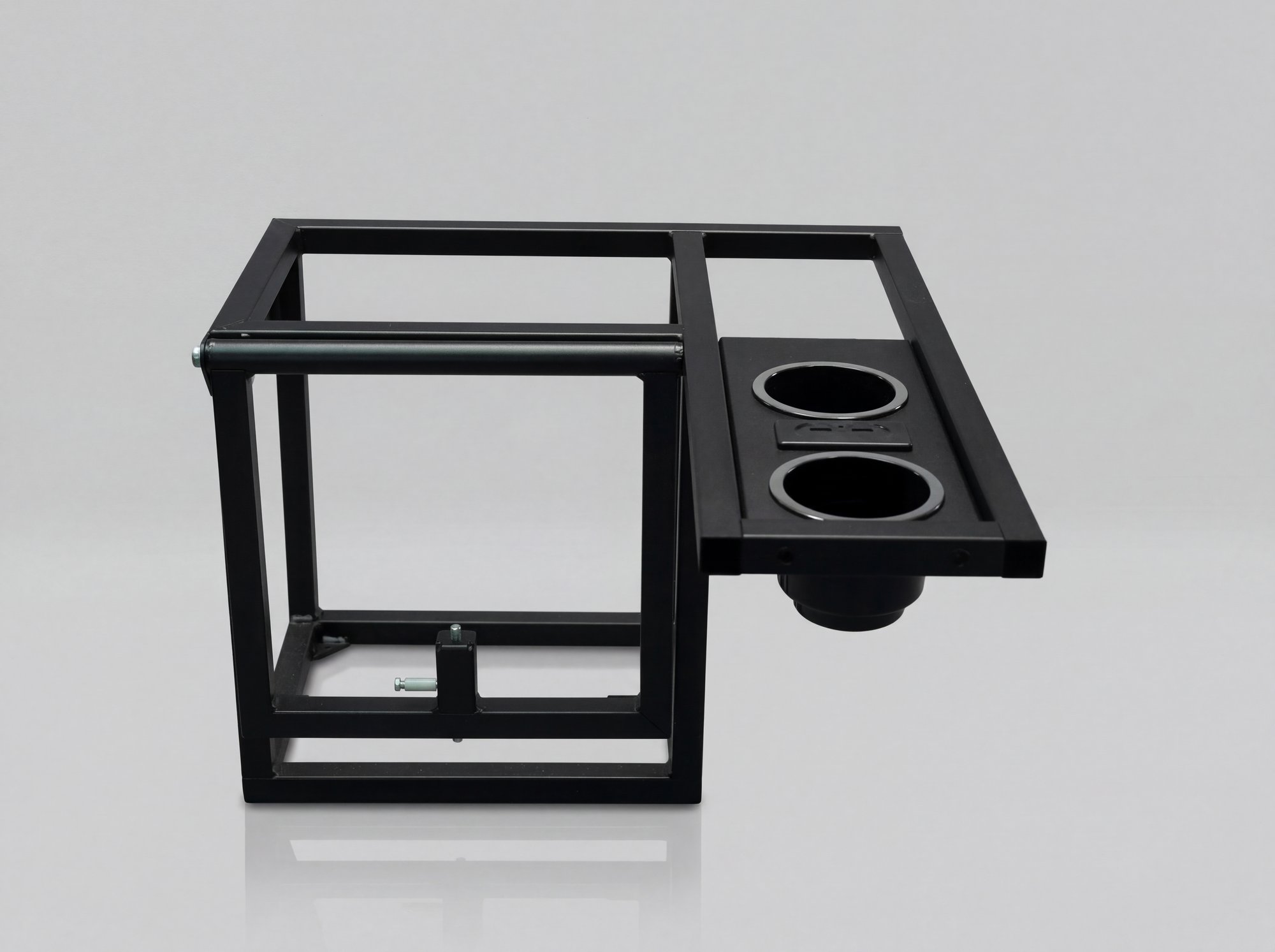

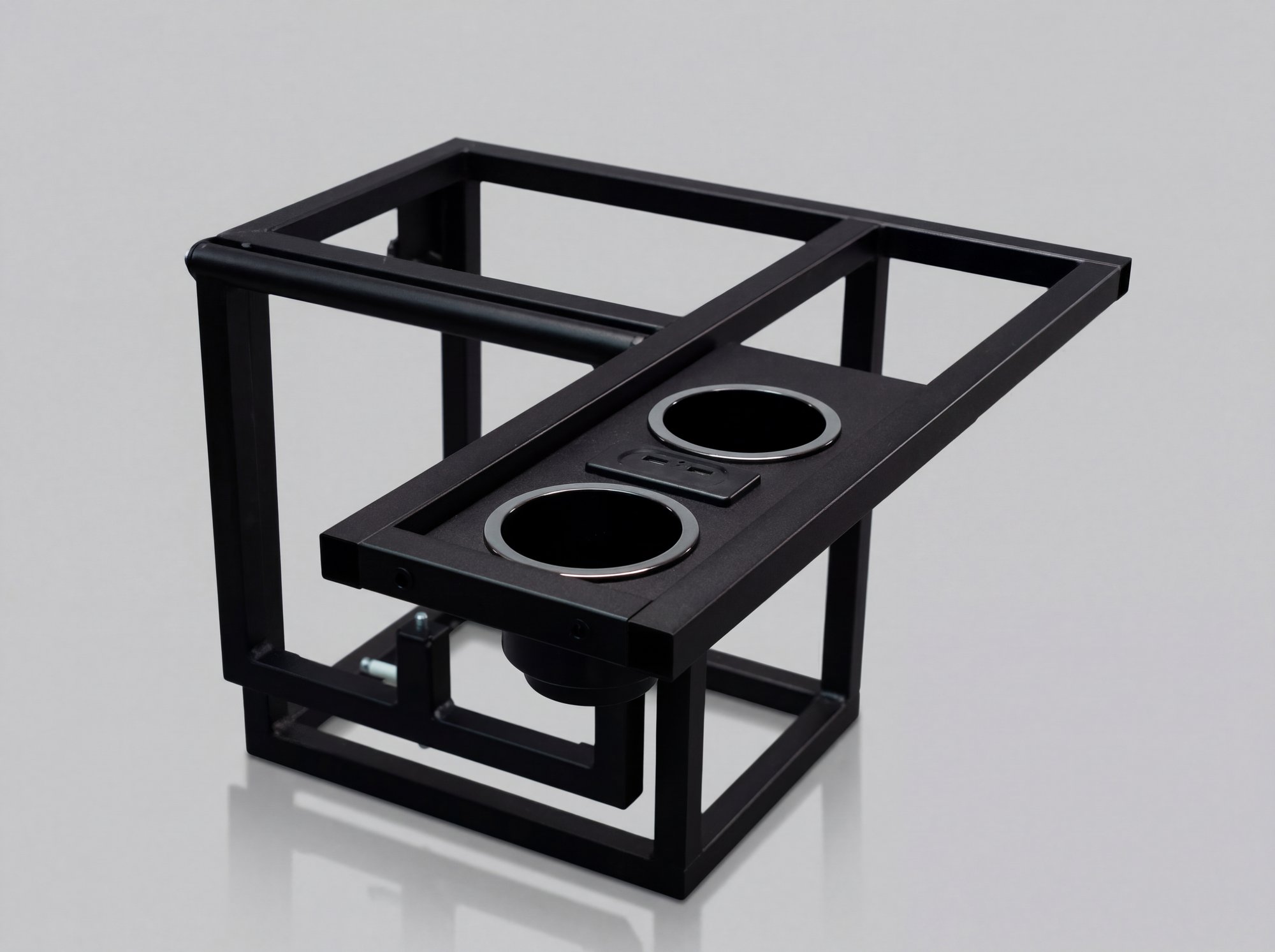

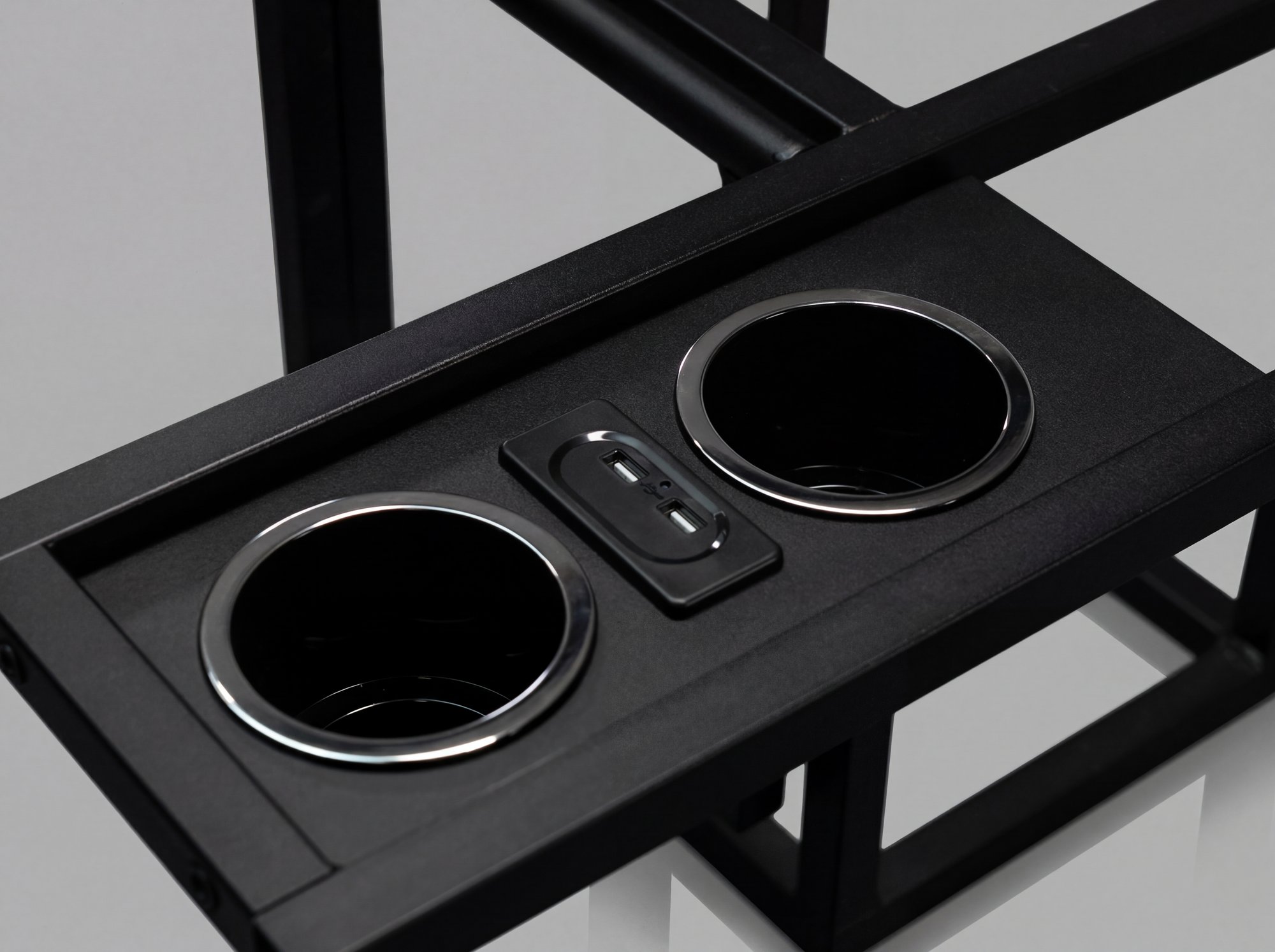

  • 2 cup holders and 2 USB points included
  • Compatible with storage units, cushion boards, and aluminium panels

Specifications

Max Frame Width
158 cm
Inner Arch Width
123 cm
Max Frame Length
193.5 cm
Sleeping Length
170 cm
Max Rear Height
107 cm
Seating Height
41 cm
